Lithography scanners and etch systems stand as the crown jewels of chip fabrication, often carrying price tags in the hundreds of millions. Yet few outside the industry recognize that the structural skeleton and internal components of these precision tools are built almost entirely from a seemingly humble material: aluminum alloy. This is not the standard aluminum used for architectural window frames, but specially engineered semiconductor-grade aluminum tailored for ultra-clean, high-precision operating environments. Below is a full breakdown of the six core aluminum material systems that power advanced semiconductor manufacturing equipment.

1. Main Structural Aluminum: The Equipment’s Load-Bearing Framework

These alloys form the foundational structure of process chambers, wafer transfer chambers and equipment support platforms.

The flagship grade is 6061 aluminum, with the T651 temper serving as the gold standard for critical structural parts.

T651 temper applies controlled post-quench stretching to eliminate internal residual stress, guaranteeing dimensional stability even after high-precision CNC machining.

This inherent stability ensures robotic wafer handling arms can achieve micron-level positioning accuracy inside sealed vacuum chambers.

Domestic production of 6061-T651 semiconductor-grade profiles has reached full maturity, delivering reliable, scalable supply for equipment OEMs.

2. Precision Low-Stress Machining Materials: Ultra-Flat Substrate Platforms

Used for chamber liners and precision base plates, these materials demand sub-micron flatness and zero post-machining deformation.

Primary grades include 6061-T651 and MIC-6 cast aluminum tooling plate.

MIC-6 is a precision cast aluminum plate manufactured with an inherently low-stress microstructure, delivered ready for high-tolerance machining without additional stress relief treatment.

While domestic suppliers have made major technological progress, extra-large-format high-precision plates still rely partially on imports, with domestic alternatives closing the performance gap rapidly.

3. Sheet Metal & Auxiliary Structures: Equipment Envelope & Ventilation

These materials form equipment enclosures, protective panels and ventilation ductwork across fab production lines.

5052 and 3003 dominate this segment.They offer balanced corrosion resistance, excellent weldability and cost-effective pricing, making them the most widely used non-critical aluminum materials in semiconductor facilities.

Full domestic supply chains are already in place, with no reliance on overseas sources for standard sheet and tube specifications.

4. Plasma Process Consumables: Etch Chamber Wear Components

Installed inside etchers as chamber liners, focus rings and process baffles, these parts face continuous bombardment from aggressive plasma during wafer processing.

5083 aluminum alloy is the undisputed material of choice here.

Its high magnesium content delivers exceptional corrosion resistance and extended service life in harsh plasma environments, making it the mainstay consumable for etching equipment.

Domestic substitution of 5083 semiconductor consumables is accelerating at a rapid pace, with domestic manufacturers now matching imported material performance in most mainstream applications.

5. High-Purity Aluminum: Cleanroom-Critical Functional Components

Used for sputtering targets and gas shower heads, these components come into direct contact with wafers during deposition and etching processes.

Typical purity levels range from 4N5 (99.995%) to 5N (99.999%).

Impurity levels must be strictly controlled at trace levels, as even minute metallic contamination can ruin entire wafer batches and reduce yield.

This remains a high-barrier technology segment, historically dominated by Japanese and US manufacturers, though domestic producers are making aggressive R&D progress toward full localization.

6. Functional Composite Materials: Advanced Thermal Management Solutions

Applied as heat dissipation substrates for high-power chips and microwave device packaging inside equipment.

Aluminum silicon carbide (Al-SiC) composite is the leading material in this category.

It combines the lightweight advantage of aluminum with the low thermal expansion and high thermal conductivity of ceramic, solving long-standing thermal management challenges in high-density semiconductor equipment.

Surface Engineering: The Final Performance Multiplier

Base material quality sets the foundation, but surface coatings determine the actual service life and long-term stability of aluminum semiconductor components.

Processes such as hard anodizing and yttrium oxide (Y₂O₃) thermal spray coatings create a dense protective barrier that shields aluminum substrates from plasma erosion and chemical attack.

Advanced surface coating technology remains one of the core bottlenecks in full domestic semiconductor equipment material localization.

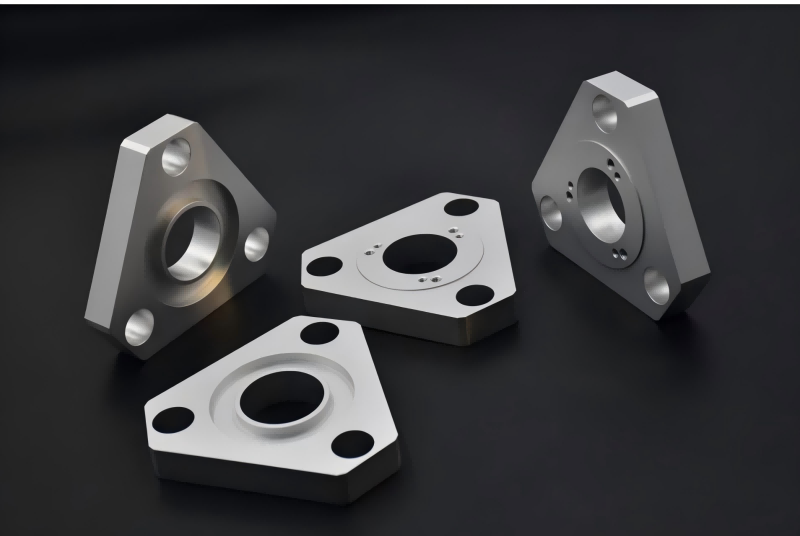

From 6061 structural frames and 5083 plasma consumables to high-purity aluminum functional components and advanced surface coatings, the full aluminum material ecosystem quietly underpins the precision-driven world of chip manufacturing. As a specialized supplier of semiconductor-grade aluminum sheets, bars, tubes and precision CNC machining services, we offer a full portfolio of 6061, 5052, 5083 and other industry-standard alloys, manufactured to strict cleanliness and dimensional tolerance requirements. Our in-house machining team supports custom fabrication of semiconductor equipment structural parts and consumables, helping global equipment OEMs build resilient, cost-effective supply chains.
