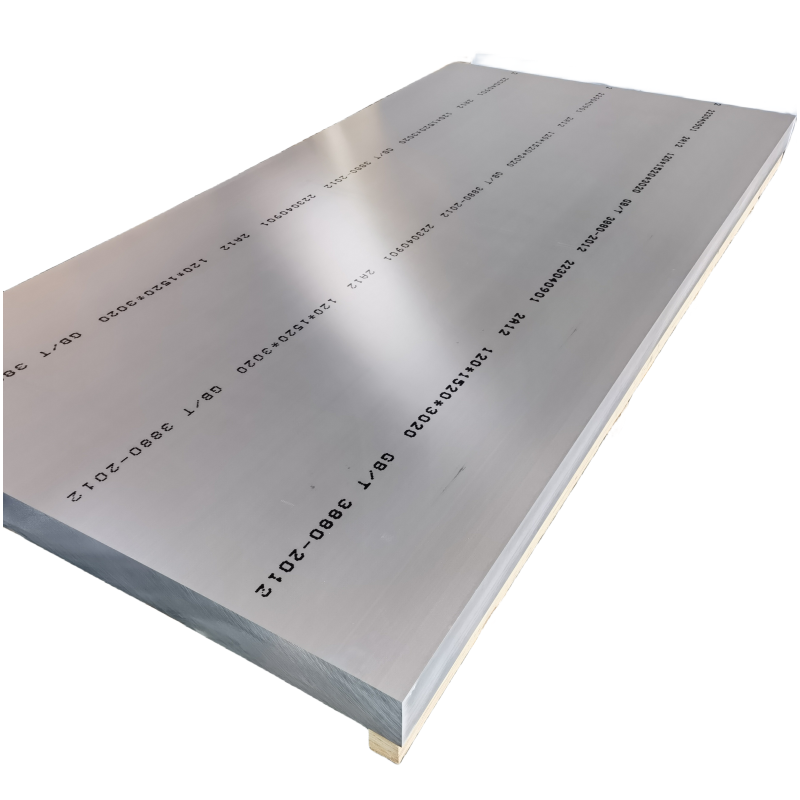

As a leading supplier in the aluminum industry, we specialize in providing high-quality aluminum products, including plates, bars, tubes, and precision machining services. Among our extensive product lineup, the 2011 aluminum plate stands out for its exceptional machinability and reliability in various demanding applications. This article delves into the key characteristics and uses of 2011 aluminum plate, offering insights for engineers, manufacturers, and procurement specialists.

Aluminum alloy 2011 is a free cutting aluminum alloy with excellent mechanical properties and easy to process. Its chemical composition includes:

Copper: Content ~ 5.0%-6.0% —— Through solid solution strengthening, it significantly enhances material strength and hardness compared to pure aluminum.

Lead (Pb): Content ~ 0.2%-0.6% —— A key component. Lead forms soft and discontinuous phase structures in the aluminum matrix, acting as a micro-lubricant during machining.

Bismuth (Bi): Content ~0.2%-0.6% —— When used in conjunction with lead or partially replacing it (especially in eco-friendly products), it further improves chip fractureability and promotes free-breaking chips.

Trace impurities: Typically contain small amounts of iron (Fe), silicon (Si), and zinc (Zn), all controlled within specified limits.

Common tempers include:

H12: Quarter Hard – Good formability, lower strength (UTS ~27 ksi / 186 MPa).

H14: Half Hard – A versatile balance (UTS ~31 ksi / 214 MPa).

H18: Full Hard – Highest strength and hardness from cold work (UTS ~42 ksi / 290 MPa), best suited for intricate machining where minimal deflection is critical. Yield Strength (Rp0.2) follows a similar progression.

Strength: Moderate strength achievable through work hardening (cold rolling).

Ductility: Elongation decreases with increasing temper hardness. H12 offers reasonable formability (Elongation ~12%) for simple bends; H14 (~10%) is less formable; H18 (~6%) is primarily for machining only.

Conductivity: Exhibits good electrical conductivity (~45% IACS) and thermal conductivity, useful in electronic housings and heat sinks.

Corrosion Resistance: A critical consideration. 2011 has significantly lower corrosion resistance than alloys like 3003 or 5052. The copper and lead/bismuth phases create potential sites for galvanic corrosion. Protective finishes (anodizing, powder coating, painting) are essential for exposed components in non-benign environments. If inherent corrosion resistance is paramount, 2011 is likely not the best choice.

2011 Aluminum Plate Prime Applications

1. Automotive Systems:

Intricate fuel injection components (injector bodies, pump housings).

Precision sensor housings and actuator parts.

Transmission components requiring fine details and tight tolerances.

Custom hydraulic fittings and connectors.

2. Aerospace (Non-Structural / Instrumentation):

Complex avionics chassis and mounting plates.

Precision instrument housings and brackets.

Non-critical hydraulic valve components.

Control system linkages requiring smooth bearing surfaces.

3. Electronics & Electrical Engineering:

High-precision connector pins and sockets demanding dimensional stability and low electrical contact resistance.

Semiconductor manufacturing equipment parts (wafer chucks, fixtures).

Heat sink bases requiring machined flatness and complex fin patterns.

Relay components and switch parts.

4. Industrial Machinery & Fluid Power:

Complex valve bodies and spools with internal passages requiring fine surface finishes for sealing.

Pneumatic system components (cylinders, manifolds).

High-volume custom fittings and adapters.

Precision gears and cams for lower-stress mechanisms.

Bearing retainers and housings.

5. Consumer Goods & Precision Instruments:

High-end camera components (Leica, Hasselblad parts).

Critical parts in optical equipment (lens barrels, focus mechanisms).

Luxury writing instrument mechanisms and trim.

Intricate hardware and fasteners.

Precautions for using 2011 aluminum plate

Stress Relieving (Stabilizing): For highly intricate parts or those requiring ultimate dimensional stability, stress relieving after rough machining and before final passes is highly recommended. This minimizes the risk of distortion caused by residual stresses from rolling or initial machining.

Surface treatment difficulties:Achieving mirror grade anodizing on 2011 aluminum alloy is a technical problem.The lead/bismuth inclusions can cause streaking, spotting, or a generally mottled appearance. Powder coating or painting are far more reliable finishing options for this alloy. If an anodized finish is essential, consider alternatives like 6262 aluminum.

Forming Limits: While H12/H14 tempers allow some bending, formability is not 2011′s strength. Sharp bends or complex shapes are better suited to alloys like 3003 or 5052. Reserve forming for simple operations if using 2011.

Tooling: Leverage its machinability! Carbide tooling is standard. Optimize feeds and speeds to maximize chip breakage and evacuation. Enjoy significantly extended tool life compared to machining other aluminum alloys.

Why choose us？

Unrivaled Machinability: Achieve complex features, tight tolerances (easily holding +/- 0.001″ or finer), and superb surface finishes (Ra < 0.8 µm) directly from machining.

Maximized Production Efficiency: Run CNC machining centers and automatic screw machines at peak speeds with minimal interruptions for chip clearing or tool changes.

Cost Reduction: Slash machining time, reduce tooling costs, minimize scrap rates, and lower overall per-part costs, especially critical in high-volume manufacturing.

2011 aluminum plate is a purpose-built engineering material. Its core value lies in its exceptional free-machining characteristics, driven by deliberate lead/bismuth additions. While compromises exist in corrosion resistance and formability, for high-volume production of precision components where machining efficiency, surface quality, and dimensional accuracy are paramount, 2011 delivers unmatched performance and cost-effectiveness. It remains the undisputed choice for machinists tackling demanding production runs.
