In the ultra-demanding semiconductor manufacturing ecosystem, where nanoscale precision, structural stability, and thermal efficiency define production yield and equipment longevity, the selection of structural materials becomes a critical engineering decision.The 7075 aluminum alloy is a high strength Al-Zn-Mg-Cu system precipitation hardening alloy. has emerged as the material of choice for high performance semiconductor equipment components, outperforming conventional aluminum grades and even competing with steel in load-bearing applications. Renowned for its exceptional strength-to-weight ratio, superior dimensional stability, and excellent machinability, 7075 is engineered to meet the rigorous standards of wafer handling, process chambers, inspection machinery, and precision fixtures. As a core product offering from our company, specializing in 7075 aluminum plates, bars, tubes, and custom precision machining, this material delivers unmatched performance for the most critical semiconductor applications.

Material Fundamentals & Chemical Composition

7075 belongs to the 7000 series of high strength wrought aluminum alloys, characterized by its chemical formulation optimized for maximum precipitation hardening. The alloy’s elemental composition is precisely controlled to ensure consistent mechanical properties: Zinc (Zn) 5.1%~6.1% as the primary strengthening agent.

Magnesium (Mg) 2.1%~2.9% to form the potent MgZn₂ intermetallic phase.

Copper (Cu) 1.2%~2.0% to enhance tensile strength and stress corrosion resistance,.

Chromium (Cr) 0.18%~0.28% to control grain structure and inhibit recrystallization.

This precise metallurgical recipe, combined with strict melting and casting protocols (including vacuum degassing and homogenization), results in a fine grained, low-porosity microstructure that is imperative for semiconductor grade materials. Unlike standard 6061 alloy, 7075 is not designed for high formability but is engineered for peak mechanical performance, making it ideal for parts produced via CNC machining rather than bending or forming.

Key Mechanical & Physical Properties for Semiconductor Applications

The defining characteristic of 7075 aluminum is its extraordinary mechanical performance, particularly in the T651 temper, the most specified condition for semiconductor components. This temper denotes a solution heat treatment, followed by controlled quenching, stress relieving via stretching, and artificial aging, which eliminates residual internal stresses and provides exceptional dimensional stability.

- Ultra High Strength: 7075-T651 boasts a minimum ultimate tensile strength of 560 MPa and a yield strength of 495 MPa, nearly double that of 6061-T6 and comparable to low-alloy steels. This allows semiconductor equipment designers to create thinner, lighter structural components that can withstand heavy static loads, dynamic forces, and vacuum pressures without deflection or deformation.

- Superior Fatigue Resistance: The alloy exhibits excellent resistance to fatigue crack propagation under cyclic loading, a vital attribute for automated wafer handling systems, robotic arms, and rotating stages that operate continuously for thousands of hours. This ensures long service life and minimizes unplanned maintenance in cleanroom environments.

- Exceptional Dimensional Stability: When precision is measured in microns, 7075′s minimal thermal distortion and high resistance to warping are invaluable. Its coefficient of thermal expansion is consistent and predictable, ensuring tight tolerances are maintained across the wide temperature fluctuations inherent in semiconductor processing chambers (from cryogenic to elevated thermal cycling).

- Low Density & High Specific Stiffness: With a density of 2.81 g/cm³, approximately one-third that of steel, 7075 enables significant equipment weight reduction. This reduces inertial forces in high-speed positioning systems, improves acceleration rates, and lowers energy consumption critical factors for advanced wafer inspection and lithography tools.

- Optimized Thermal Conductivity: Balancing strength and thermal management, 7075 offers a thermal conductivity of approximately 150~160 W/m·K, efficiently dissipating heat generated during high-power semiconductor processes while maintaining structural rigidity.

Machining Excellence & Customization Capabilities

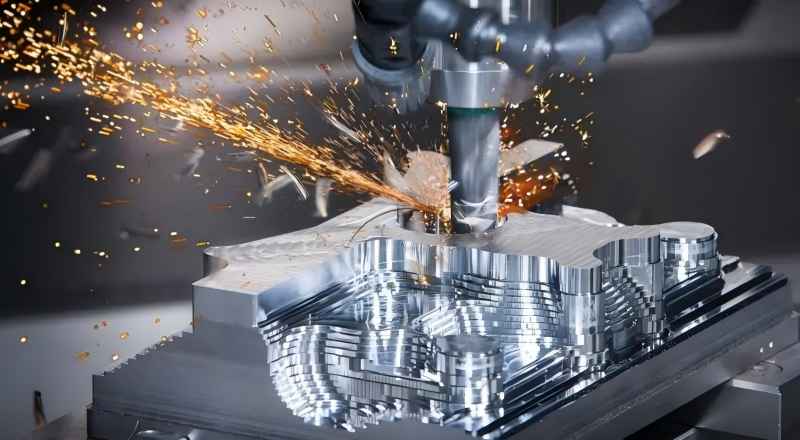

A major advantage of 7075 aluminum, especially in the T6 temper, is its excellent machinability for precision CNC operations. Our company specializes in converting 7075 plates, bars, and tubes into custom machined semiconductor components, leveraging the material’s favorable cutting characteristics to achieve unparalleled precision:

- Superior Surface Finish: 7075 machines to exceptionally smooth surface finishes (Ra ≤ 0.4 μm) when using sharp carbide or PCD tools, eliminating the need for secondary polishing and ensuring optimal vacuum sealing and resistance to particle contamination in cleanroom environments.

- Extreme Precision Tolerances: We consistently hold tight dimensional tolerances down to ±0.002 mm for critical features, with geometric precision including parallelism ≤ 0.005 mm and flatness ≤ 0.003 mm, meeting the strictest requirements for semiconductor wafer chucks, electrode holders, and chamber liners.

- Complex Geometries: The alloy responds well to high speed machining, allowing for the production of intricate, thin-walled, and highly detailed parts with complex contours, deep cavities, and micro-features essential for modern semiconductor equipment.

- Post-Processing Compatibility: 7075 readily accepts a range of surface treatments critical for semiconductor applications, including hard anodizing, electroless nickel plating, and passivation. These treatments enhance corrosion resistance, surface hardness (up to 500 HV), and non-conductivity, protecting against corrosive process gases and plasma etching environments.

Target Applications in the Semiconductor Industry

7075 aluminum is strategically deployed across the semiconductor manufacturing chain, where performance and reliability are non-negotiable:

1. Wafer Processing & Handling Components: Precision end-effectors, robot grippers, wafer carriers, and transfer arms that require high strength, low inertia, and zero particulate generation.

2. Process Chamber Structures: High-vacuum chamber walls, gas distribution plates, and internal supports that demand structural rigidity under vacuum, excellent thermal conductivity, and corrosion resistance.

3. Inspection & Metrology Equipment: Ultra-stable bases, stages, and frames for optical and electron beam inspection tools, ensuring nanometer-level positional accuracy and vibration damping.

4. Test & Packaging Hardware: High-strength test sockets, burn-in board frames, and precision molds for advanced packaging, where repeated thermal cycling and mechanical stress demand durable materials .

5. Lithography & Etching Parts: Optics mounts, shutter mechanisms, and reaction vessels that must maintain precise alignment under high-stress, high-temperature conditions.

Why Choose Our 7075 Aluminum Products?

Our company is dedicated to supplying semiconductor-grade 7075 aluminum in plate, bar, and tube forms, complemented by our in-house precision machining services. We adhere to international standards including AMS 4167, AMS 4168, and ISO 6362, ensuring our materials are free from inclusions, porosity, and residual stresses. Each product undergoes rigorous quality testing, including ultrasonic inspection, hardness testing, and tensile verification to guarantee compliance with SEMI standards for semiconductor materials.

By selecting our 7075 aluminum solutions, semiconductor equipment manufacturers gain a reliable partner that delivers material consistency, machining precision, and technical expertise. We understand that in the semiconductor industry, material failure is not an option, it directly impacts production yield, equipment uptime, and ultimately, the bottom line. 7075 aluminum represents the pinnacle of aluminum alloy development, and our mastery of this material, from raw stock to finished machined components, positions us as a trusted supplier for the world’s leading semiconductor fabs and equipment OEMs.

Investing in 7075 aluminum is an investment in long-term performance, reliability, and efficiency. For semiconductor applications that demand the absolute best in structural materials, 7075 is not just a choice, it’s the industry standard.
